SERIES 150 OVERSHOT

TIANHE Series 150 Releasing and Circulating Overshot is an external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drill pipe. The grapple of the overshot can be designed for different sizes of fish, so one overshot can be dressed with different size of grapple components for fishing different sizes of fish.

Sales inquiry Lease inquiry

Product details
Asking price

Construction

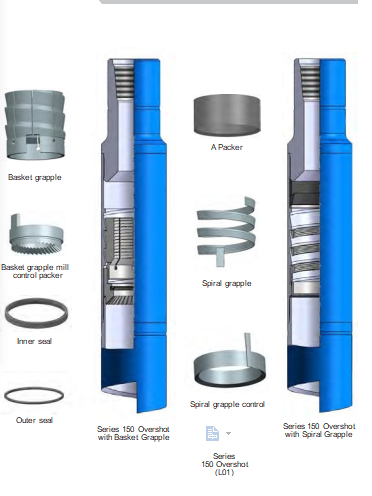

TIANHE Series 150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type “A” Packer are used. If the fish diameter is considerably below maximum catch size (½” or more) a Basket Grapple and a Mill Control Packer are used.

When ordering please specify:

● The model of the overshot

● The hole, casing size or O.D. of overshot

● Top connection

● O.D of the fish

FS = Full Strength

SH = Slim Hole

Specifications - Series 150 Overshot

Model	Product Code	O.D (mm)	Max.Catch Size(mm)		API Connection	Model	Product Code	O.D. (mm)	Max.Catch Size(mm)		API Connection
Model	Product Code	O.D (mm)	Spiral Grapple	Basket Grapple	API Connection	Model	Product Code	O.D. (mm)	Spiral Grapple	Basket Grapple	API Connection
LT-T89	L01-1100	89	60.3	47.6	NC26	LT-T194	L01-2400	194	159	141	NC50
LT-T92	L01-1200	92	73	63.5	NC26	LT-T200	L01-2500	200	159	141	NC50
LT-T95	L01-5100	95	76.2	66.6	NC26	LT-T206	L01-2600	206	178	163	NC50
LT-T102	L01-1300	102	73	60.3	NC26	LT-T206A	L01-2700	206	168	152	NC50
LT-T105	L01-1400	105	85.7	73	NC31	LT-T219	L01-2900	219	178	159	NC50
LT-T114	L01-1500	114	89	75	NC31	LT-T232	L01-3000	232	203	187	NC50
LT-T117	L01-3800	117	89	78	NC31	LT-T244	L01-3100	244	203	184	6 5/8 REG
LT-T127	L01-1600	127	95	80	NC38	LT-T260	L01-3200	260	219	200	6 5/8 REG
LT-T143	L01-1700	143	120.6	108	NC38	LT-T270	L01-3300	270	228.6	209.6	6 5/8 REG
LT-T152	L01-2000	152	128	114	NC38	LT-T273	L01-3400	273	241.3	216	6 5/8 REG
LT-T168	L01-2100	168	127	114	NC50	LT-T286	L01-3500	286	244.5	225.4	6 5/8 REG
LT-T168B	L01-2200	168	139.7	120.6	NC50	LT-T298A	L01-3600	298	257	238.1	6 5/8 REG
LT-T181	L01-2300	181	146	127	NC50	LT-T340	L01-3700	340	286	263	6 5/8 REG
