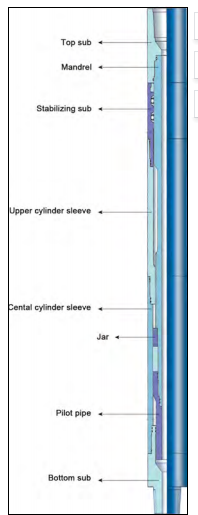

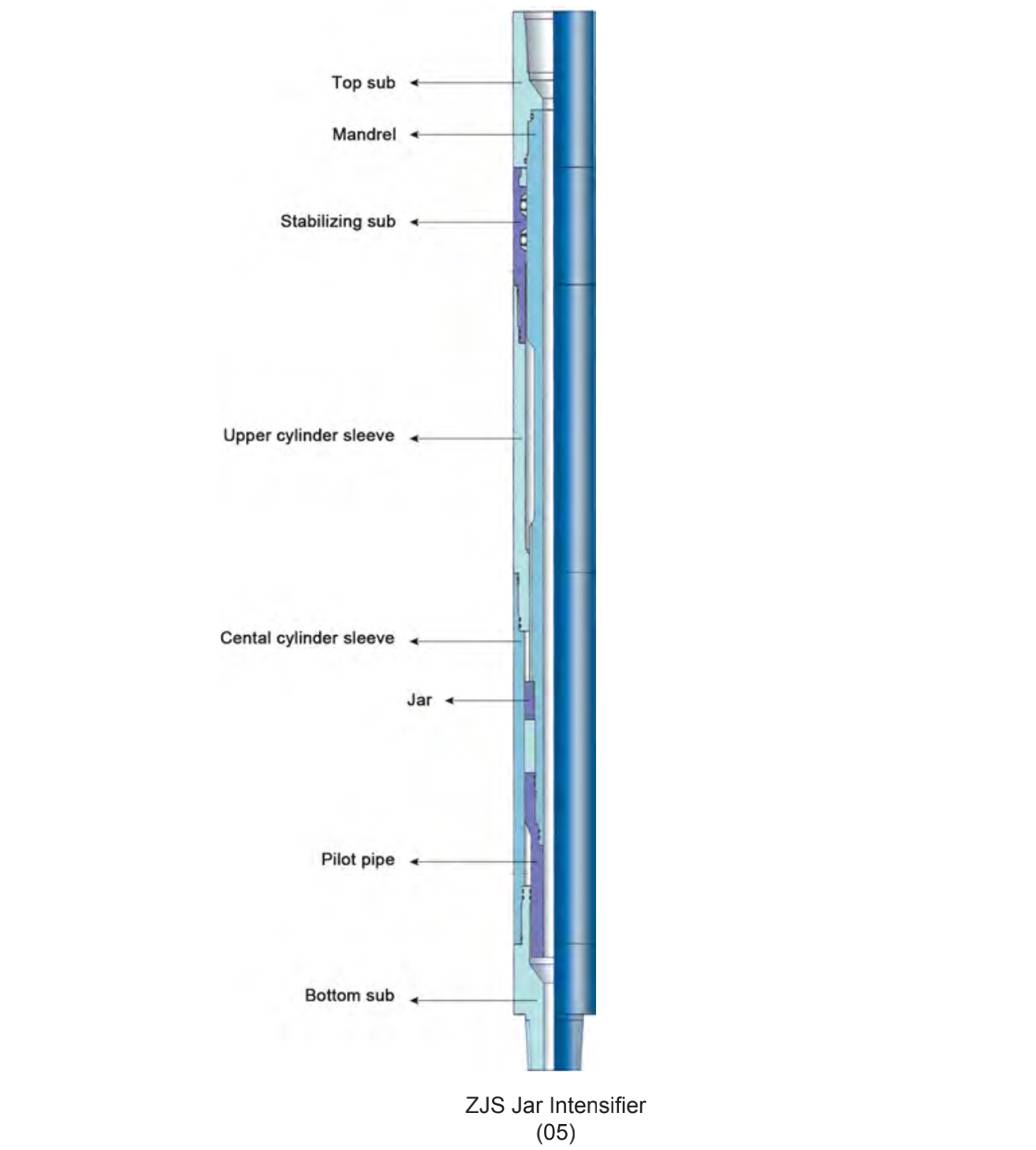

The ZJS type jar intensifier is a type of downhole fishing jar designed to increase the top jar’s jarring force. It runs in conjunction with either YSJ type hydraulic top jar or CSJ type super jar. Its main function is to supply acceleration to the upper end of the jar during the free jarring stroke. The intensifier is essentially a fluid spring that stores strain energy under compression. When the strain is removed, the stored energy is released, accelerating and intensifying the top jarring action. The top jarring action thus creates a direct impact on the fish. In addition, the fluid helps to absorb the shock from the rebounding drill string after the jarring stroke, protecting both the drill tools and fishing tools from damage.

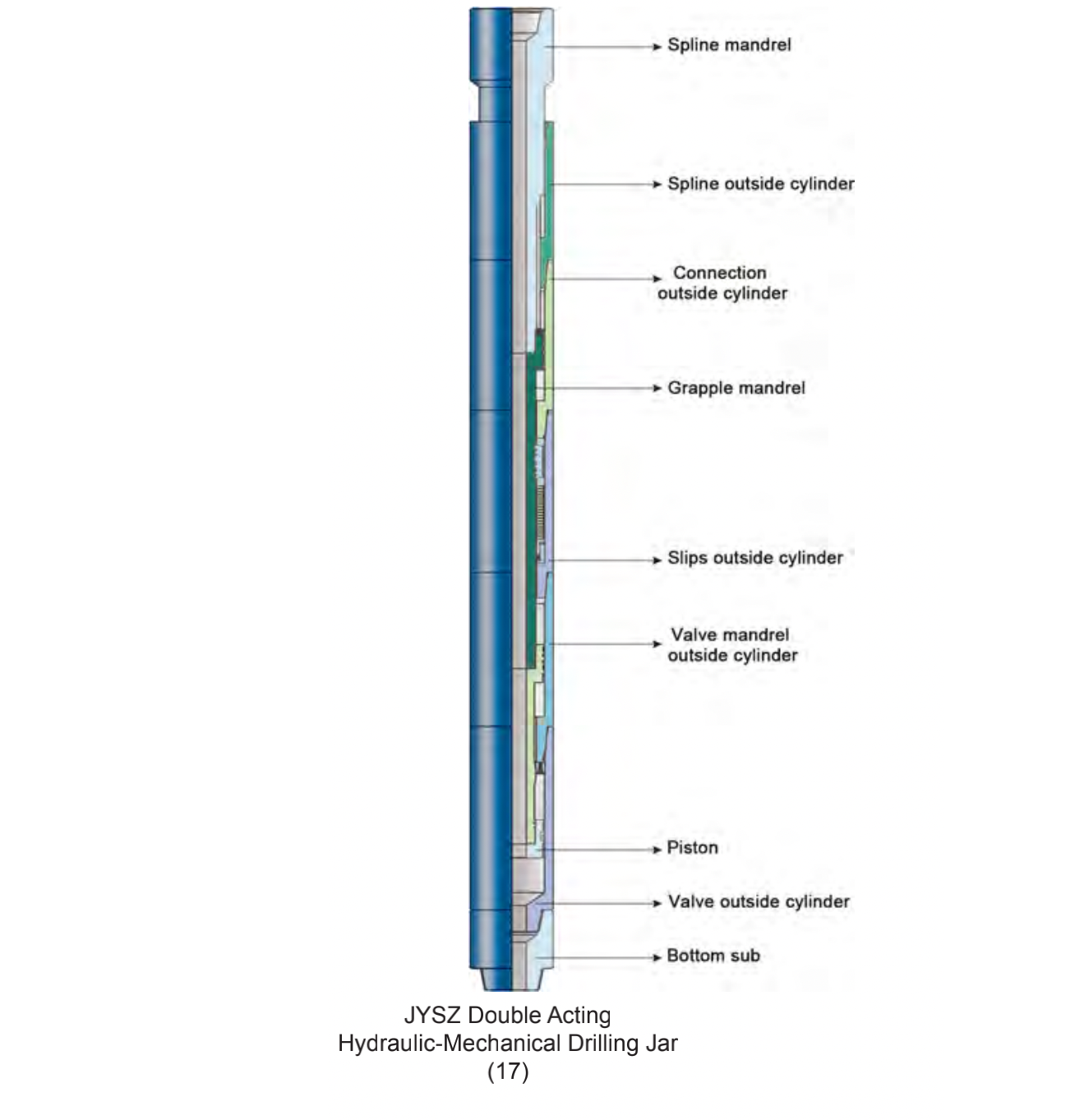

(The drilling jar is a double acting jar) This drilling jar is designed to deliver hydraulic delay when jarring in the up direction, and mechanical release when jarring in the down direction. It provides excellent functional stability and strong jarring forces in both jarring direction. It is used to free stuck drill string components and is recommended for directional/deep wells drilling application.

The ZJS type jar intensifier is a type of downhole fishing jar designed to increase the top jar’s jarring force. It runs in conjunction with either YSJ type hydraulic top jar or CSJ type super jar. Its main function is to supply acceleration to the upper end of the jar during the free jarring stroke. The intensifier is essentially a fluid spring that stores strain energy under compression. When the strain is removed, the stored energy is released, accelerating and intensifying the top jarring action. The top jarring action thus creates a direct impact on the fish. In addition, the fluid helps to absorb the shock from the rebounding drill string after the jarring stroke, protecting both the drill tools and fishing tools from damage.

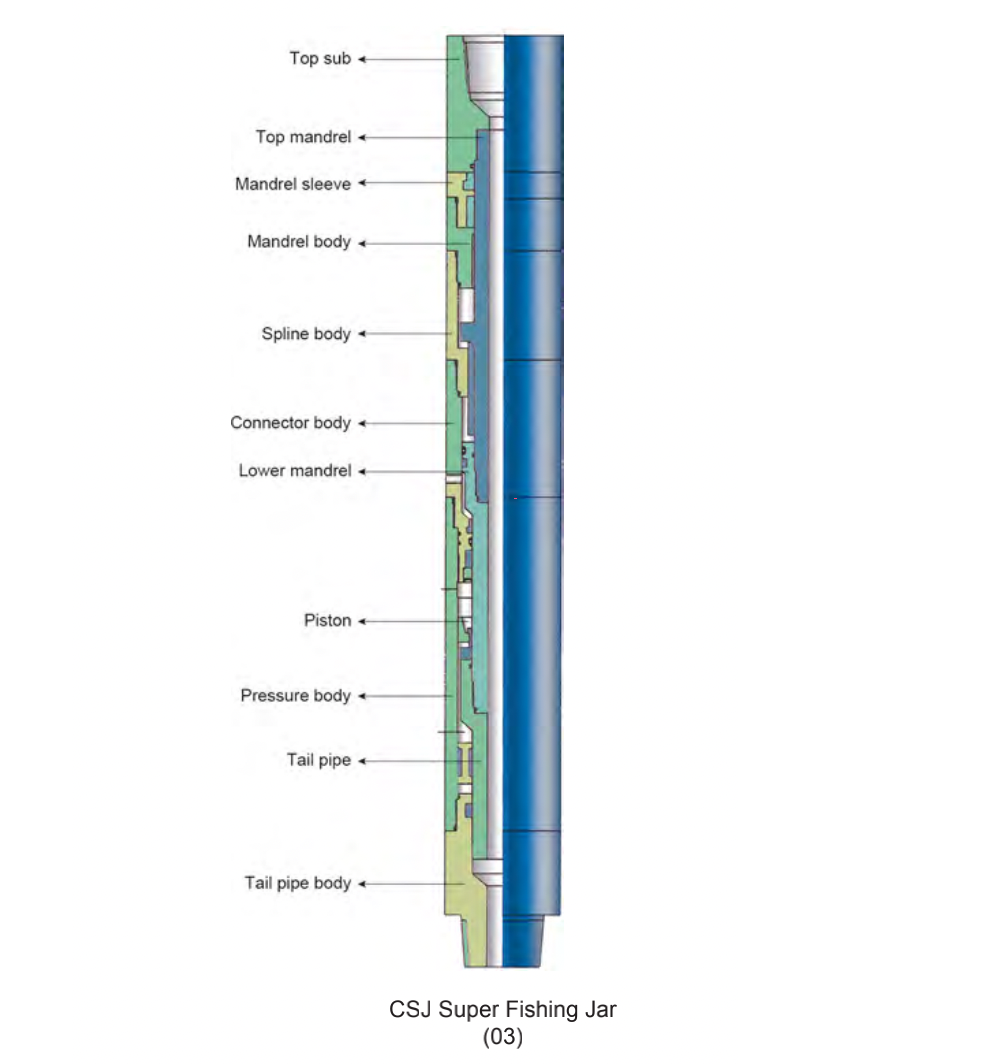

CSJ type super fishing jar is a fishing tool that provides larger jarring force when compared with others of the same specifications. This jar’s structure is compact, performance is reliable and is easy to adjust and operate under different drilling conditions. The CSJ type super jar is a new type of top jarring tool used in oilfield, geological exploration and drilling operation.

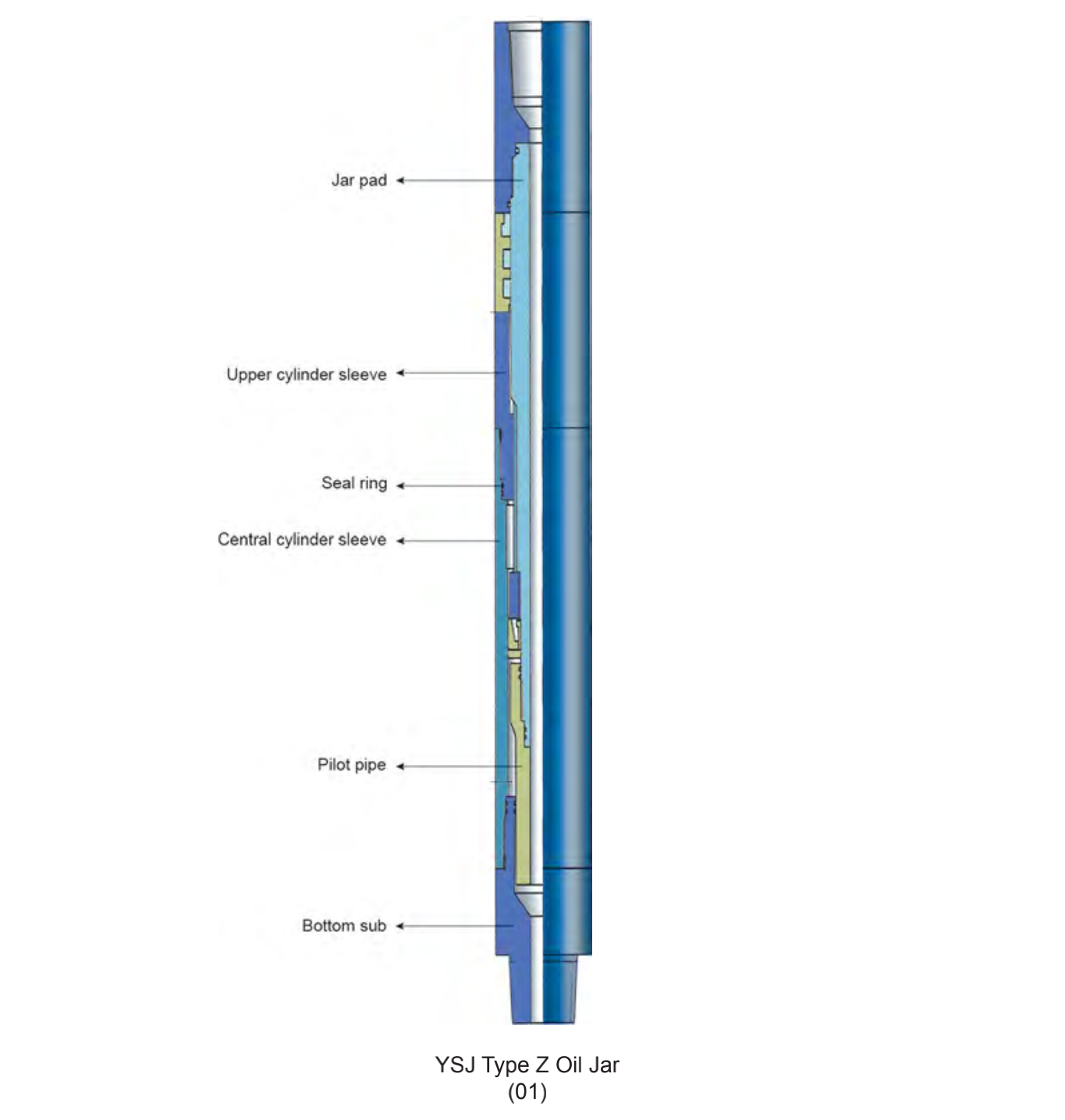

YSJ type hydraulic jar is used to free stuck drilling tools in the well. This jar can produce large up-striking force for fishing and coring operations. Through hydraulic principle, a sudden release of the elastic potential energy that accumulates in the drill tool during the hydraulic time delay will create a large up jarring force. The key advantages of YSJ type Z oil jar is that with its simple structure. It provides strong jarring force, is easy to operate and can be easily reset to the pre-load position for consecutive jarring. For better jarring impact, YSJ type Z oil jar is recommended to be used together with the ZSJ type jar intensifier.
