WASHOVER PIPE

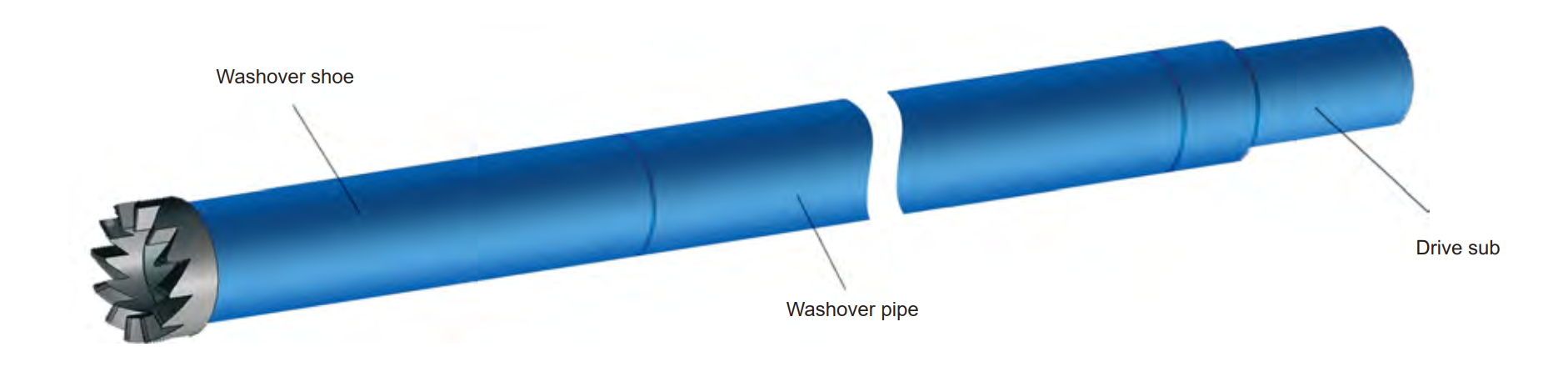

Washover pipe is a special tool commonly used to release stuck section of drill string in the well bore. TIANHE offers a complete range of washover pipe for the industry. TIANHE provides a unique FJWP thread that adopts a two-step double shoulder threaded connection which assures quick make up and high torsional strength.

Sales inquiry Lease inquiry

Product details
Asking price

Specifications - Washover Pipe

Model	Product Code	O.D	I.D	Wall Thickness	Min. Hole Size	Max. Mill Size	Max. Tensile Load kN	Connection Field Torque N.m	Seal Pressure MPa.
Model	Product Code	mm					Max. Tensile Load kN	Connection Field Torque N.m	Seal Pressure MPa.
TXG114.30-8.56	L21-190	114.30	97.18	8.56	120.65	80.90	390	9490	20
TXG127-9.19	L21-230	127.00	108.62	9.19	146.05	101.60	440	12202	20
TXG139.70-9.17	L21-270	139.70	121.36	9.17	152.4	117.48	500	14914	20
TXG146.05-7.92	L21-300	146.05	130.21	7.92	161.93	127.00	500	14914	20
TXG146.05-9.00	L21-320	146.05	128.05	9.00	161.93	120.65	560	16269	20
TXG168.28-8.94	L21-380	168.28	150.39	8.94	187.33	142.88	600	21693	15
TXG177.80-9.19	L21-420	177.80	159.42	9.19	200.03	152.40	640	24404	15
TXG193.68-9.53	L21-490	193.68	174.63	9.53	212.73	168.28	700	31183	15
TXG193.68-10.92	L21-500	193.68	171.83	10.92	212.73	165.10	810	36607	15
TXG193.68-12.70	L21-510	193.68	168.28	12.70	212.73	161.93	1060	43386	15
TXG203.20-9.53	L21-530	203.20	184.15	9.53	215.90	177.00	820	32539	15
TXG206.38-9.40	L21-540	206.38	187.58	9.40	215.90	177.80	830	32539	15
TXG219.07-11.43	L21-600	219.07	196.21	11.43	244.48	187.33	1100	47453	15
TXG219.07-12.70	L21-610	219.07	193.67	12.70	244.48	184.15	1220	54232	15
TXG228.60-10.80	L21-620	228.60	207.01	10.80	250.83	200.03	1260	47453	15
TXG244.48-11.99	L21-690	244.48	220.50	11.99	266.70	212.73	1460	67791	15
TXG244.48-13.84	L21-700	244.48	216.80	13.84	266.70	206.37	1560	81349	15
TXG273.05-11.43	L21-720	273.05	250.19	11.43	290.45	238.13	1620	81349	15
TXG273.05-12.57	L21-730	273.05	247.91	12.57	298.45	234.95	1640	88128	15
TXG298.44-12.42	L21-750	298.44	273.60	12.42	323.85	263.53	1800	108465	10
TXG339.72-13.06	L21-760	339.72	313.60	13.06	365.13	301.62	2020	149140	10
TXG406.40-16.66	L21-770	406.40	373.08	16.66	444.50	355.60	2500	254894	7.0
