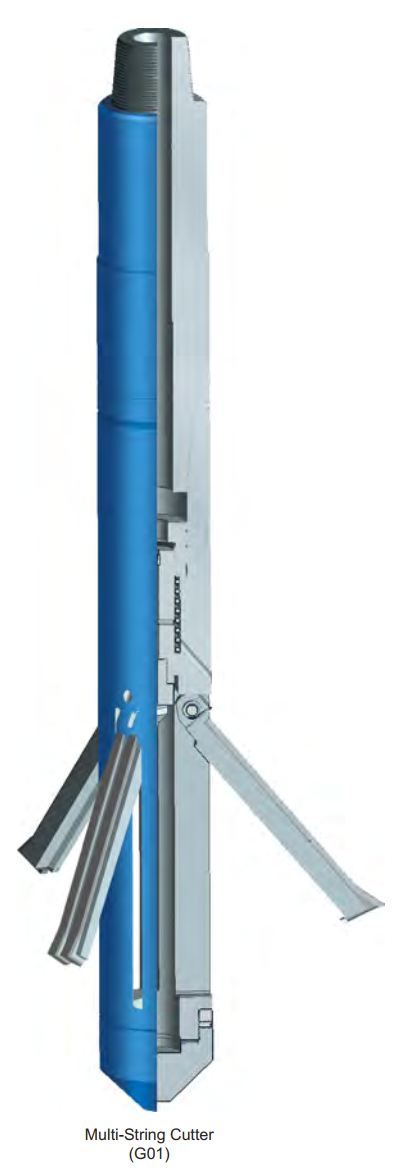

MULTI-STRING CUTTER

TIANHE Multi-string Cutter is built to withstand extreme shock encountered while cutting multiple strings of un-centralized conductor pipes. The unique construction of this tool enables the rugged cutter arms to expand outward up to 5 times the diameter of the tool body. The cutter can achieve maximum stability under all types of adverse cutting conditions, including hard spots, eccentricity, interrupted cuts, etc. For example, a 13 3/8” casing cutter, the diameter is only 11 3/4”. However it can handle and cut a wide range of pipes with varying weights up to a 60” diameter.
Sales inquiry Lease inquiry

Features and Benefits

●    Cuts multiple strings smoothly, even when the strings are not concentric;

●    Support maximum expansion of blades, up to 5 times body diameter;

●    Rugged 3-bladed construction provides fast cut at high speed;

●    Cutter arms can be changed on rig floor.



When ordering please specify:

●    Casing size or range to be cut;

●    Top connection;

●    Body OD.


Specifications - Multi-String Cutter



Model



Product  Code

Body O.D

(in)



Connection



Casing Range



Optional knives



GD127



G01   127 00



4"



2-7/8   REG



5"-9   5/8"

        5"

        5"-7"

5"-9   5/8"



GD140



G01   140 00



4   3/8"



3-1/2   REG



5   1/2"-9 5/8"

        5 1/2"

5   1/2"-7"

5   1/2"-9 5/8"





GD178





G01   178 00





5 3/4"





NC38





7"-16"

      7"

7   5/8"-8 5/8"

8 5/8"-11 3/4"

11   3/4"-16"







GD210







G01   210 00







8 1/4"







6   5/8 REG







9 5/8"-30"

       9 5/8"

10 3/4"-13 3/8"

10   3/4"-16"

13   3/8"-20"

20"-30"







GD298







G01   298 00







11   3/4"







6   5/8 REG







13   3/8"-60"

13   3/8"-16"

13   3/8"-20"

13   3/8"-30"

20"-30"

20"-36"

30"-60"
