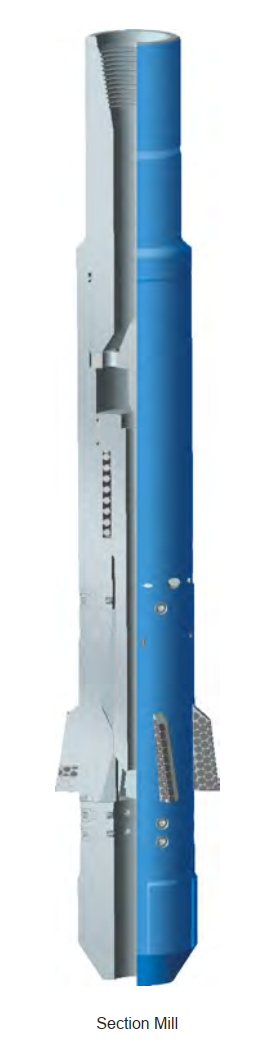

SECTION MILL

Section mills are primarily used to milling sections in the casing (for side tracking, gravel packing) and perforation zones. TIANHE section mill is available in a variety of Casing sizes, ranging from 4 1/2" to 13 3/8". The blades are all dressed to enable simultaneously milling of the casing. The milling rate is usually limited by the ability of the fluid in removing the cuttings.
Sales inquiry Lease inquiry

When ordering please specify:

●  Tool model

●  Size and weight of Casing to be milled

●  Top connection

Specifications - Section Mill



Model



DXG114



DXG127



DXG140



DXG168



DXG178

Product Code

D111400

D112700

D114000

D116800

D117800

Casing Size (in)

4 1/2

5

5 1/2

6 5/8

7

Body O.D (in)

3 3/4

4 1/8

4 1/2

5 1/2

6

Fishing Neck O.D (in)

2-3/8 REG

2-7/8 REG

2-7/8 REG

3-1/2 REG

3-1/2 REG




Model



DXG194



DXG219



DXG245



DXG273



DXG298



DXG340

Product Code

D119400

D121900

D124500

D127300

D129800

D134000

Casing Size (in)

7 5/8

8 5/8

9 5/8

10 3/4

11 3/4

13   3/8

Body O.D (in)

6 1/2

7 3/8

8 1/4

9 1/4

10

11   1/2

Fishing Neck O.D (in)

3-1/2 REG

4-1/2 REG

4-1/2 REG

6-5/8 REG

6-5/8 REG

6-5/8 REG
