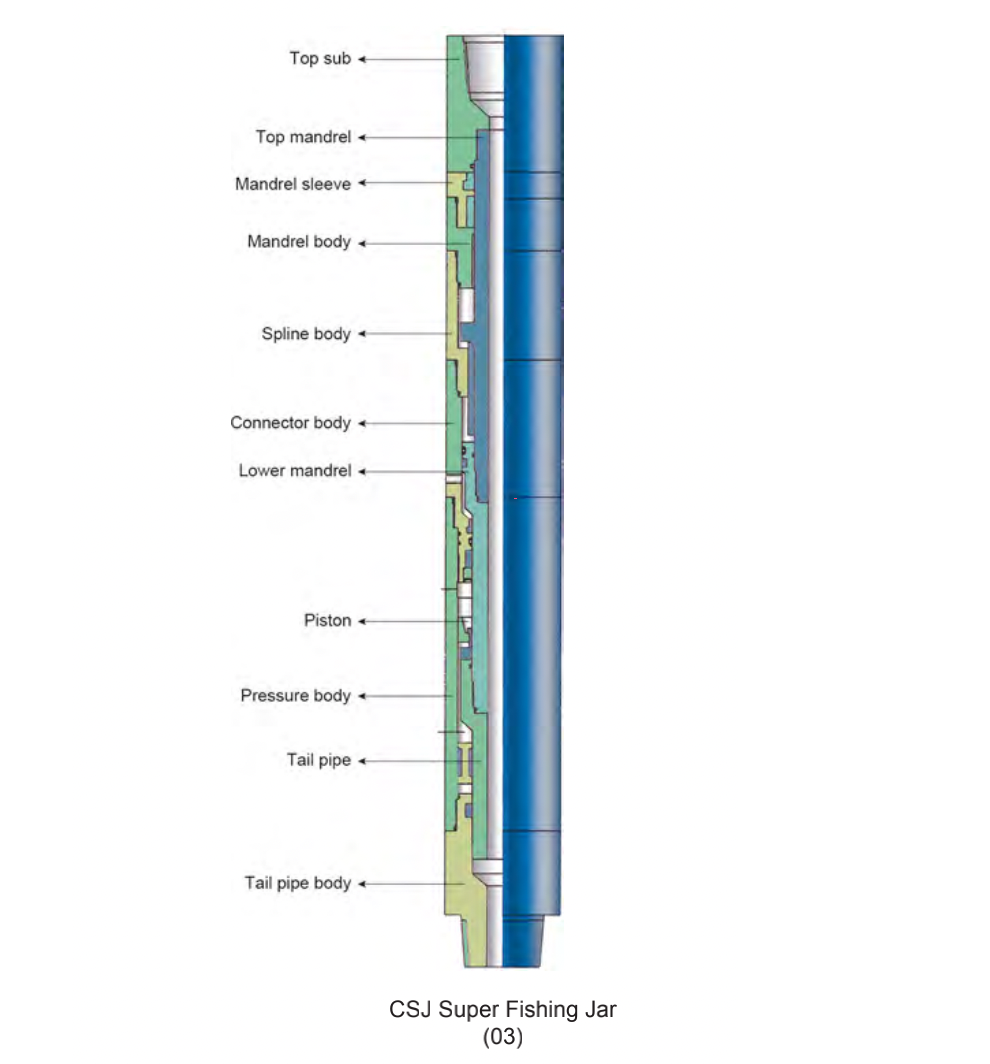

CSJ SUPER FISHING JAR

Working principle

CSJ type super fishing jar achieves the top jarring action by means of hydraulic mechanism. When the drill tool attached directly above the super fishing jar is raised, there is sufficient time for the drill tool to store elastic energy due to the damping action between the tapered piston and the sealing body. When the taper piston slowly moves to the release bore, the drill tool suddenly contracts and produces an upward dynamic load by the instant unloading of the pressurized hydraulic oil. A reliable impact working surface is designed in the product structure to ensure that a large upward jarring force is generated to free the stuck drill tool while hard stopping the piston. CSJ type super jar uses the spline for torque transmission, so as to aid the rotation of the drill tool and mud circulation at the bottom of the well. An important feature of this jar is the ease of closing and resetting the tools for consecutive jarring.
