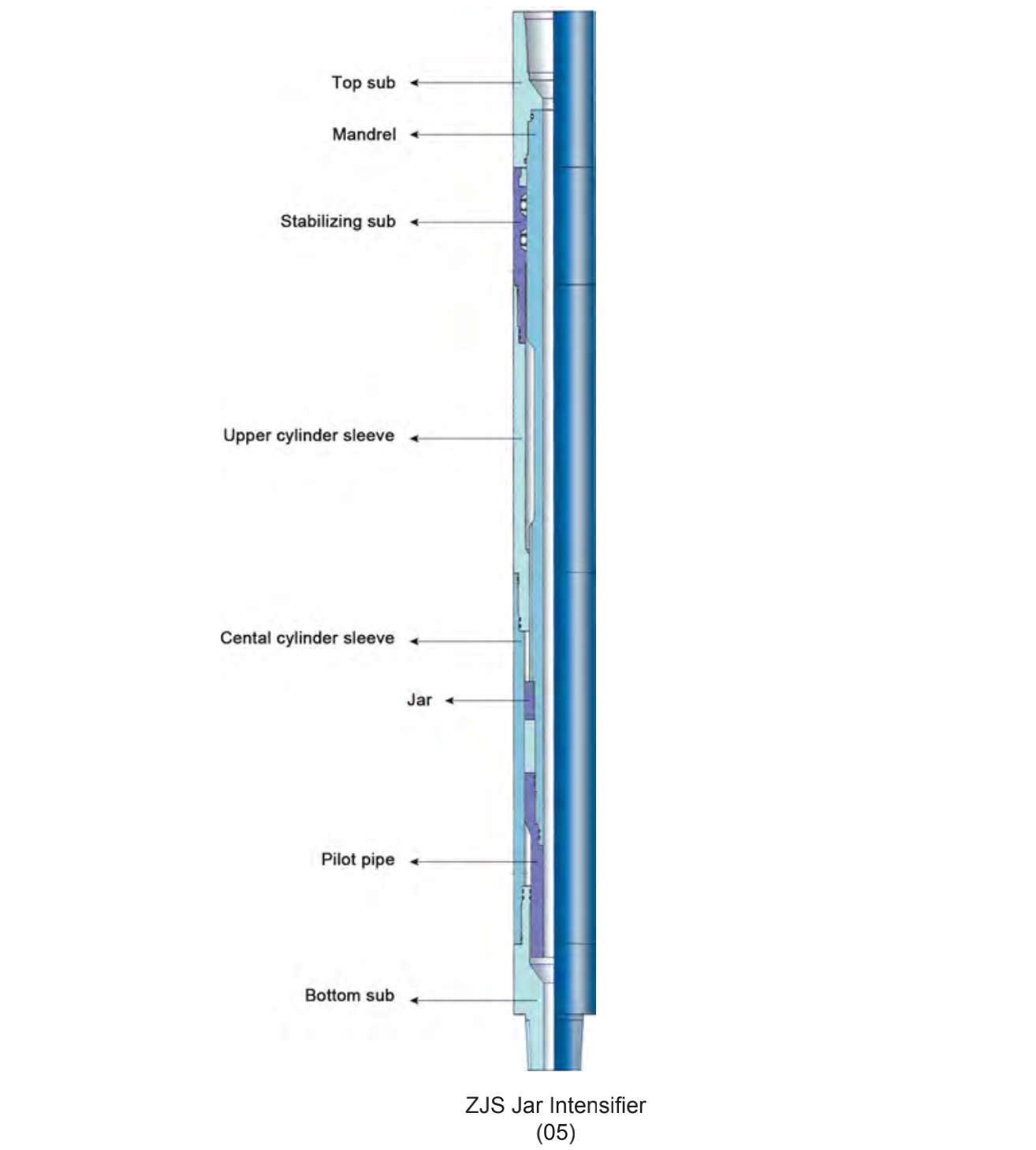

ZJS JAR INTENSIFIER

Working Principle

Normally, the jar intensifier is connected on top of drill collar and on the lower end of the drill stem. When the fishing tool engages with the fish, the drill tool is lifted. A large amount of energy was thus stored in the intensifier when the silicone oil in the top chamber of the piston was compressed. As the tool is lifted, when the top jar reaches it’s free impact stroke, the stored energy in the jar intensifier is suddenly released, accelerating the drill collars and jars upward. When the top jar reaches its maximum stroke, a strong top jarring action will impact on the fish,  resulting in one time jarring force.

The ZJS type jar intensifier is easy to assemble, operate and maintain. No high  pressure pre-loading is required.
