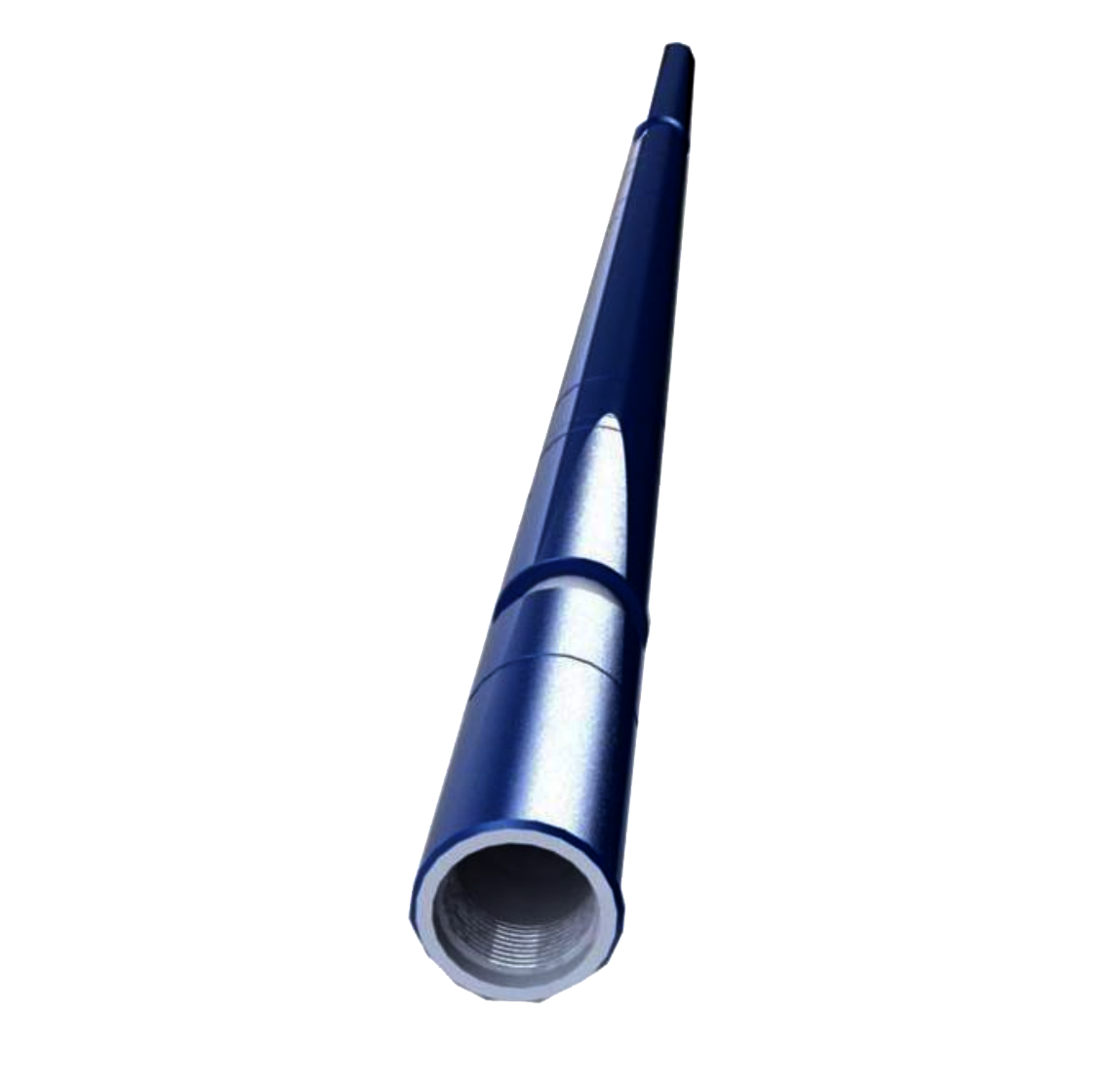

HYDRAULIC OSCOLLATOR

With the development of drilling technology, the number of large displacement and section horizontal wells is increasing.The large friction and pressure support during the drilling process not only seriously affect the mechanical drilling speed ,but also cause downhole failures easily such as differential pressure jamming ,especially when sliding drilling ，insufficiently apply real and effective drilling pressure to the bit ,which reduces the drilling efficiency and prolongs the well construction period. The Agitator developed by TianHe Group, through virtual fluid simulation and other technologies, optimizes the structural design and performance parameters and is suitable for various complex drilling conditions, effectively solving the above problems.
Sales inquiry Lease inquiry

Product Features

▲The Agitator can effectively reduce the friction between the BHA and the wellbore in sliding drilling and effectively improve the WOB transmission.

▲Reduce downhole torsion, reduce lateral vibration and improve penetration rate.

▲Directional drilling efficiency can be greatly improved, and more smooth borehole can be drilled.

▲Agitator can be used in vertical wells, motor guided drilling, rotary steering drilling, extended reach wells, and shale gas reservoir drilling.

▲The utility model can solve the problems of supporting pressure, jamming and slipping, and the poor control force of the drill bit on the tool surface. Improve the control of directional drilling tool surface and effectively improve the directional ability.

▲The pressure pulse generated by the Agitator will not interfere with the signal of MWD and will not damage the MWD instrument.

▲The Agitator has good adaptability to conventional PDC bits and roller bits.

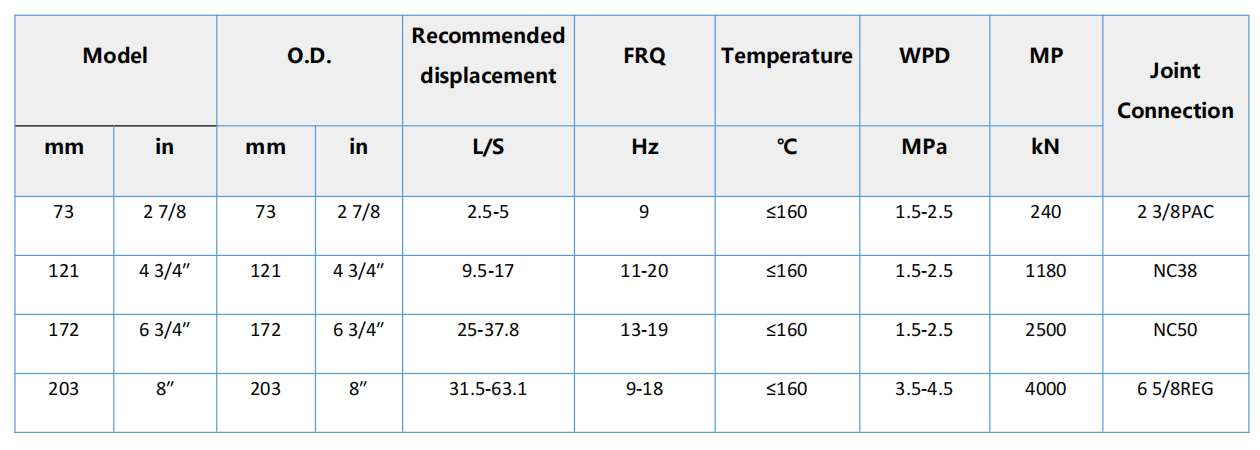

截屏2023-07-28 16.50.37.png
