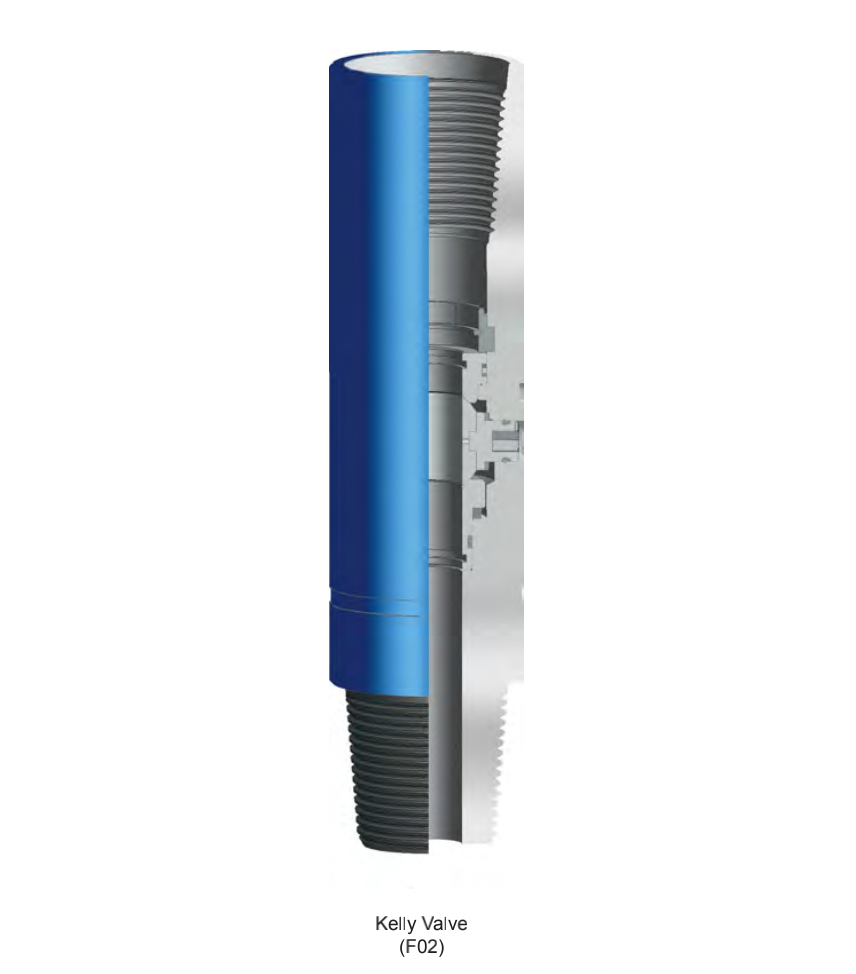

KELLY VALVE

Kelly valve is a manually operated ball type valve for the drill stem, divided into upper and lower sections. The upper Kelly valve is connected between lower end of swivel and upper end of Kelly. The lower Kelly valve is connected between upper end of drill pipe and lower end of Kelly or lower end of Kelly saver subs. The Kelly valve can be opened or closed off by simply turning a special operating wrench 90° according to indicated direction.
Sales inquiry Lease inquiry

The sealing principle for Kelly valve is to ensure a close seat between the  ball and the ball seat. The lower seat is supported by a spring. The force  provided by the spring keep the ball securely in place with lower seat.  During normal drilling operation, the hole is kept unblocked by turning the  stem to “on” position; In case of kick or blowout, turn the operating stem to  “off” position to close off the internal bore of drill string, the kick or blowout  accident is avoided due to a high pressure sealing situation between ball  and the ball seat.


When ordering please specify

● Upper or Lower type;

● Tool OD;

● Working pressure: 5,000 / 10,000 / 15,000 psi;

● Tool connection.

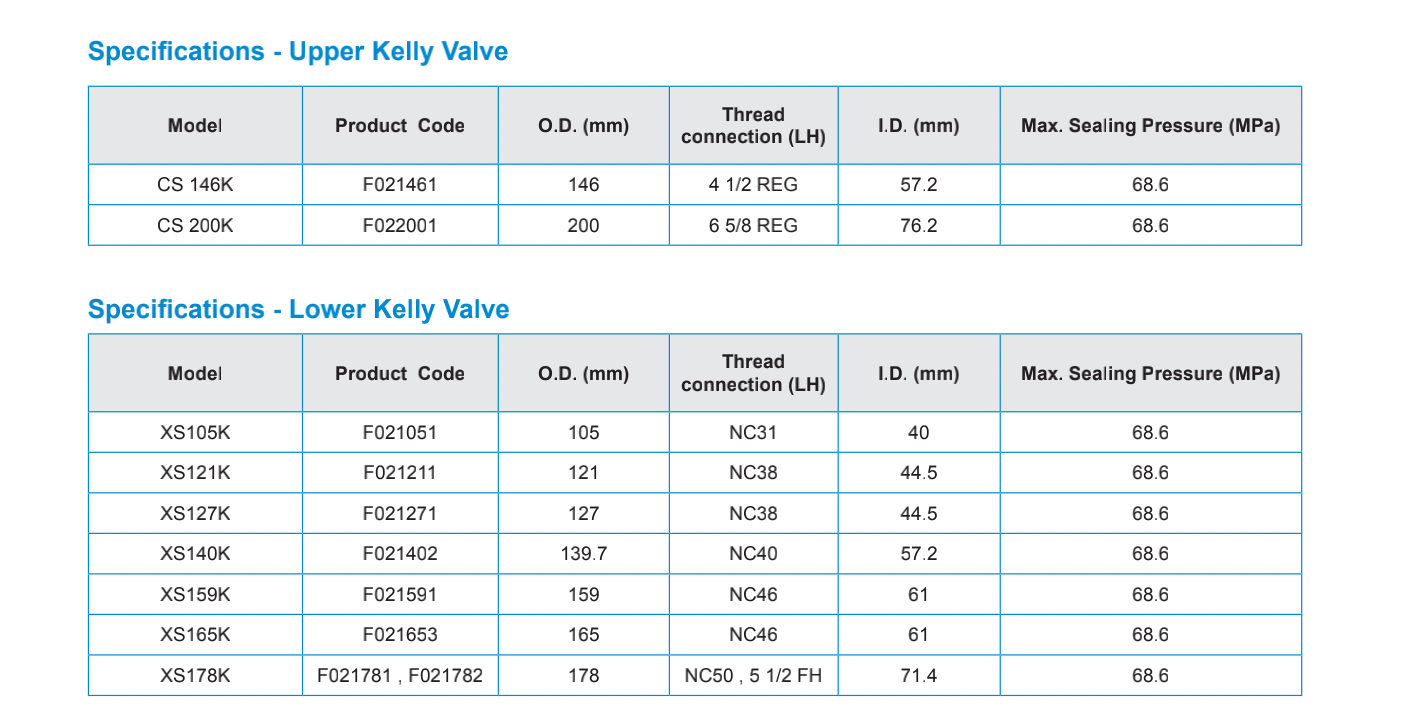

截屏2022-03-25 下午2.21.46.png
