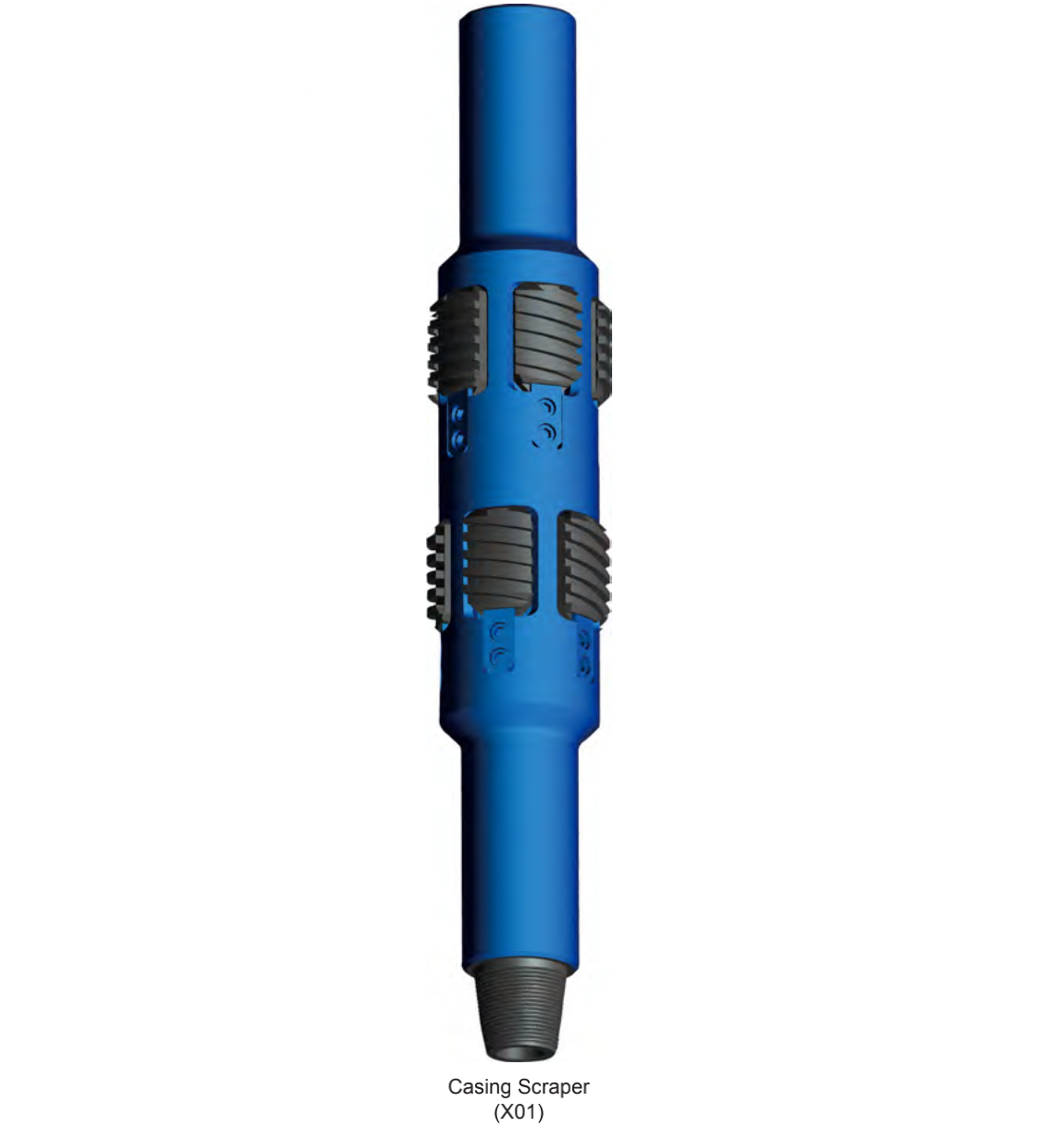

CASING SCRAPER

Maintaining a clean casing is important during drilling operation, fishing or wireline  tools. Likewise, packers, patches, spears, and similar tools require clean surfaces  to grip. Obstructions on casing walls frequently cause these tools to fail or become  difficult to operate.

Our Casing Scraper removes deposits, burrs, and irregularities from casing that might cause trouble during the operation of packers or other close tolerance equipment.

Casing Scraper has two sets of blades. Each blade is constructed using high quality cast steel for excellent scraping characteristics and long-lasting durability. These scraper blades are designed to scrape over 360º of surface area. The scraper blades are designed with a long taper for passing through casing connections with minimal chance of hanging up.

Operation

The Casing Scraper is normally connected to the work string with a drill bit attached  at the bottom. Simply run the scraper into the casing or tubing using rotation or  spudding to clean the inside wall of the pipe.

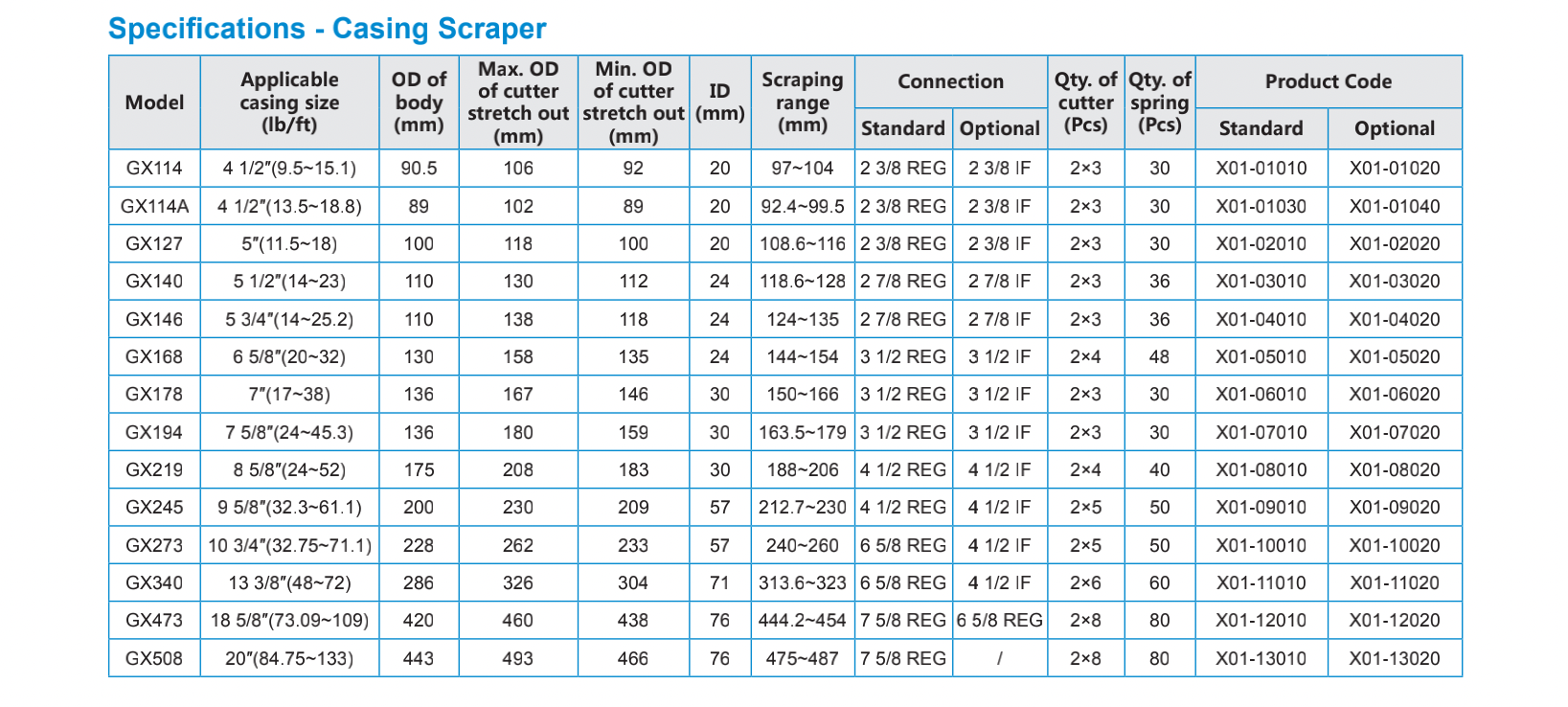

When ordering please specify

● Casing Scraper model;

● Connection, if non-standard;

● Casing size and weight.
