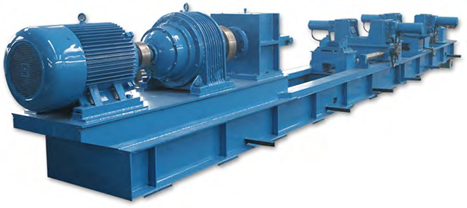

LMST-II DOWNHOLE MOTOR TESTER

Downhole motor tester is designed to test the seal performance of new and refurbished downhole motors in the workshop or at the rig site. It serves as a quick verification tool for new and refurbished downhole motor to ensure that it’s within specification and in working order before operation in the rig. The tester consists of a tool support structure, water supply system, hydraulic system and control system. The tester is highly automated, easy to operate and support a wide range of downhole motors and tools.

Sales inquiry Lease inquiry

Product details
Asking price

LMST-II DOWNHOLE MOTOR TESTER

Specifications - LMST-II Downhole Motor Tester

Product

Code

Main Motor

Power

Hydraulic Pump Motor Power

Driving Speed

Application

Dia. Range

Max. Torque

Working Pressure Of Water System

Max. Working Pressure Of Hydraulic System

E41210000

75KW

11KW

40 r /min

Φ89~Φ290

15000N•m

8MPa

20MPa

SYJ HYDRAULIC JAR TESTER

SYJ Hydraulic Jar Tester is a self-contained unit designed to test the tensile strength and pressure performance of Jars, Absorbers and Jars Intensifiers. In addition, it can be used to test the strength of thread connection on downhole drilling tools. Tester has high safety feature and is designed to handle big push/pull tonnages. It’s ease of operation and maintenance help users save operating cost and time.

Specifications - Syj Hydraulic Jar Tester

Model	Product Code	Motor Power (KW)	Motor Speed (r/Min)	Max Pressure (MPa)	Max Work Pressure (MPa)	Oil Tank Capacity (L)	Max Push (T)	Max Pull (T)	Test Tool Length Range (m)
SY J150	E31100000	15	1460	31.5	20	400	150	130	1-9m
SYJ150B	E31200000	15	1460	31.5	20	400	150	130	1-10m
SYJ150C	E31300000	15	1460	31.5	20	400	150	130	1-11m
