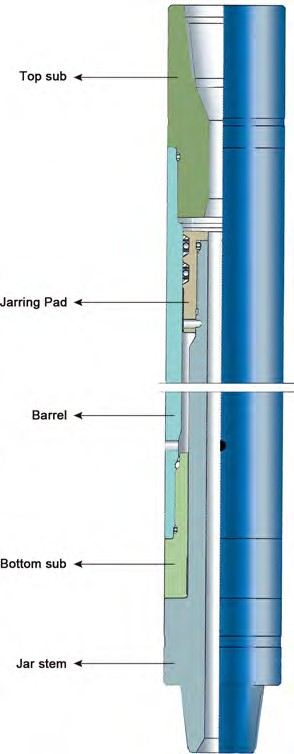

KXJ type bumper sub is a mechanical jarring tool. It allows operators to bump up or down repeatedly until the fishing objectives are met or when the stuck drill stem is released. In event where stuck drill stem cannot be released by lifting and jarring, the bumper sub can be rotated to engage and disengage releasable fishing tools to release the fish. In milling and cutting operations, the bumper sub is used to provide feeding force to the mechanical internal cutter, ensuring a reliable and even cut. When the bumper sub is used with a reversing unit, it helps to compensate the rising stroke for threads after reversing.

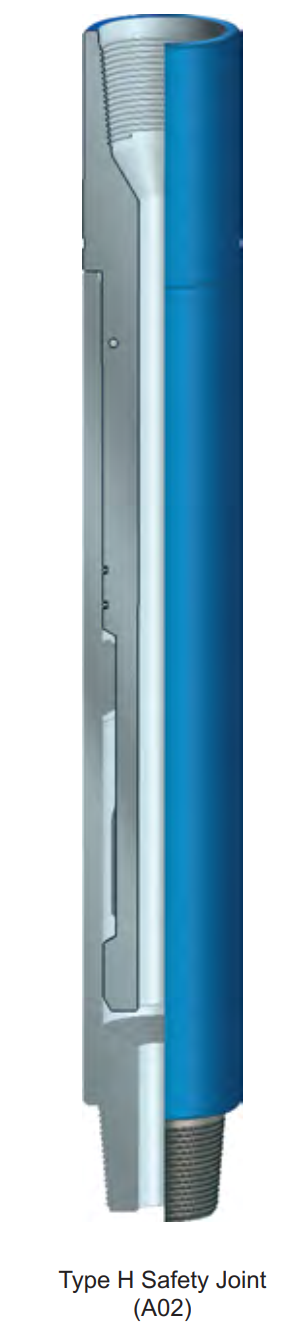

H type safety joint, is an essential safety tool for sub-surface drilling. It is built to withstand all kinds of loads (axial pulling or pressing) and it aid in torque transmission. In downhole operations, safety joints are normally added to the drill string as a precaution to support any tool recovery emergencies. The safety joint allows quick release and disengagement of the tool should they become stuck, so that the drill stem above can be removed. On top of that, while resuming the downhole operation, the safety joint ensures quick and easy reconnection of drill stem.

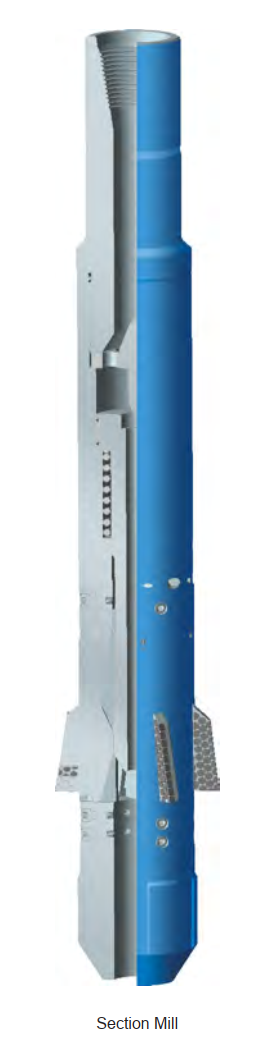

Section mills are primarily used to milling sections in the casing (for side tracking, gravel packing) and perforation zones. TIANHE section mill is available in a variety of Casing sizes, ranging from 4 1/2" to 13 3/8". The blades are all dressed to enable simultaneously milling of the casing. The milling rate is usually limited by the ability of the fluid in removing the cuttings.

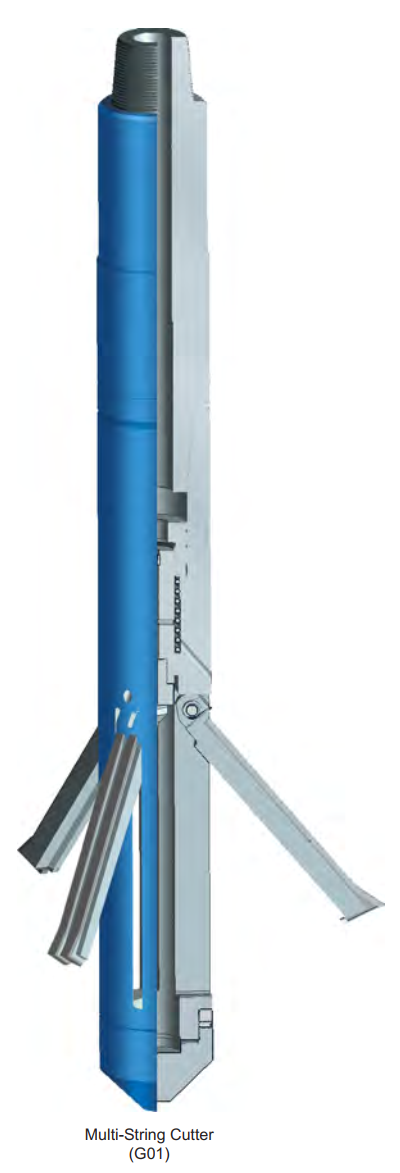

TIANHE Multi-string Cutter is built to withstand extreme shock encountered while cutting multiple strings of un-centralized conductor pipes. The unique construction of this tool enables the rugged cutter arms to expand outward up to 5 times the diameter of the tool body. The cutter can achieve maximum stability under all types of adverse cutting conditions, including hard spots, eccentricity, interrupted cuts, etc. For example, a 13 3/8” casing cutter, the diameter is only 11 3/4”. However it can handle and cut a wide range of pipes with varying weights up to a 60” diameter.

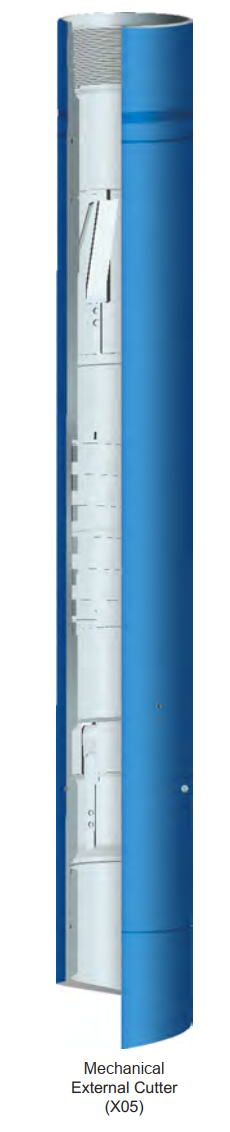

WD-J type mechanical external cutter is an automatic spring-fed cutter that provides fast, efficient, smooth external cutting and recovery of long sections of tubing, drill pipe and casing. The spring-fed feature prevents excessive strain on the knives which could have caused the knives to burn or break when the cutter is being applied on the rig floor.
